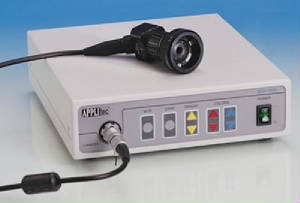

MSV - 2000

HIGH RESOLUTION DIGITALLY CONTROLLED MEDICAL VIDEO CAMERA



Lightweight compact design High resolution and sensitivity Variety of camera heads for endoscopy and microscopy Interfaces to all existing rigid and flexible endoscopes Adapters with anti-moire filters for use with fiberscopes Fully immersible camera head and optical adapters for endoscopy User-friendly set-up and operation Automatic white balance and manual color control Automatic electronic shutter for optimal exposure Multiple parallel outputs: composite video, S-VHS and RGB Easy replacement of camera head cable
Camera head with 1/3" CCD for both rigid and flexible endoscopes, using optical adapters with large variety of dedicated focal lengths for all endoscopic applications with or without anti-moire filters, and range of holders for Pentax, Olympus, Fujinon or rigid endoscopes.   Camera heads Ø29mm or Ø17mm in diameter for microscopes and slit-lamps can be provided with 1/3" or 1/2" CCD and cables with variety of lengths.

Technical Specifications
Camera Control Unit
Minimum Illumination	Less than 1.5 Lux @ F 1.2
Horizontal Resolution	470 horizontal TV lines
Signal/Noise Ratio	Greater than 46dB @ AGC off
Electronic Shutter Speeds	1/50 (PAL) or 1/60 (NTSC) to 1/10,000 seconds
Video Outputs	2 x composite video signal 2 x S-VHS (Y/C) signal 2 x RGB signal
Front Panel Controls	White Balance, Gain, Brightness, Colors
White Balance	Automatically adjusted by front panel button in less than 3 seconds
Power Supply	90-264 V AC, 50/60 Hz
Regulatory Approvals	IEC 601-1, EN 60601-1-2
Operating Environment	Ambient temperature 10 to 40o C (50 to 140o F) Relative humidity 30 to 85% Air pressure 700 to 1060 hPa
Dimensions	220 (W) x 60 (H) x 250 (D) mm
Weight	1.8kg
Camera Heads	Endoscopy	Ø29mm Microscopy	Ø17mm Microscopy
Dimensions	30 x 30 x 40 mm	Ø29 x 47 mm	Ø17 x 40 mm
Weight (without cable)	46 g (excluding optical adapters)	34 g	16 g
Pick-up System	Interline transfer CCD solid-state
Number of Pixels	470,000 (PAL) / 410,000 (NTSC)
.

UT4000A

• 5.7" Color TFT Display
• 200-Set Vital Sign Data Storage and Recall
• Graphic & Tabular Trend Information
• Auto Measurement of Blood Pressure, Programmable Cycle 1 Minute to 120 Minutes
• Applications from Neonate to Adult
• Networking Capability
• Optional Thermal Array Recorder
• ECG, NIBP, SpO2

UT4000A Pro

• 7" Color TFT Display
• 4 Channel Waveform Display
• 2 Channel ECG Real Time Display
• 600-Set Blood Pressure Data Storage and Recall
• 48-Hour Trend of SpO2/PR/RESP/HR/TEMP1/TEMP2
• Pacemaker Detection
• Apnea Alarm Function
• Application from Adults to Neonates
• Central Station Networking Interface
• Internal Rechargeable Battery
• External Thermal Recorder (Optional)

UT4000F

• 10.4" Color TFT Display
• Adult to Neonatal Usage
• 6 Minute Real Time Waveform History Review
• 48 Hour Graphic and Tabular Trend Information
• Up to 200 Set Vital Signs Reading Storage & Recall
• Optional Built-in Strip Chart Recorder
• Network Connection for Centralized Monitoring
• External VGA Display Connectivity
• AC/DC Operation

UT4000F Pro

• 12.1" Color TFT Display
• Maximum 8 Channel Waveform Display
• 4 Channel ECG Waveform and Enlarged Waveform Display
• 120 Hour Graphic and Tabular Trend Information
• 600 Group Vital Sign Data Recall
• 12 Minute ECG Waveform Storage and Review
• ST Segment and Arrhythmia Analysis
• Pacemaker Detection
• Optional Cardiac Output and Multi-Gas Monitoring
• Networking Capability
• Bed to Bed View
• Applications from Adults to Neonates
• ECG/ST/ARRHYTHMIA/NIBP/SpO2/RESP/TEMP/IBP/CO2/RECORER
